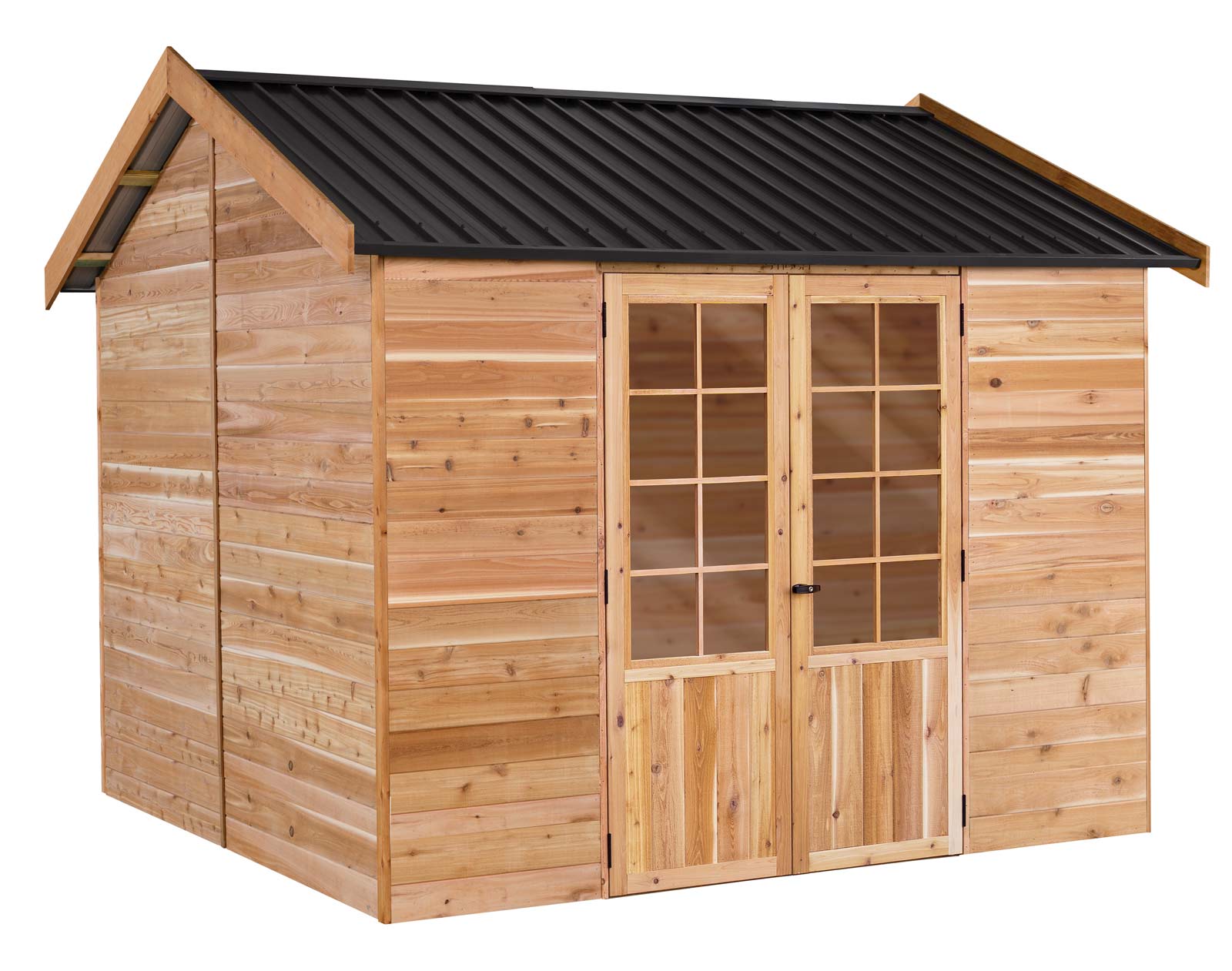

RIDGEVIEW STUDIO 10’x10′

The RIDGEVIEW STUDIO is designed to be a pretty addition to any property in addition to offering a practical, long-lasting out of doors work area or interest room. The RIDGEVIEW STUDIO contains a Colorbond gable roof with overhanging eaves, colonial fashion door with tinted acrylic glazing and a locking T-handle. Choices together with further home windows, further doorways, deck plus annex roof, in addition to a full flooring equipment can be found. We are able to additionally prepare set up at a really affordable worth, click on the “E-book Set up” hyperlink above.

Our CEDAR STUDIO vary is manufactured in Australia, and is constructed utilizing 42 x 35mm termite resistant pine framing and 18mm thick Canadian Western Purple Cedar VJ cladding with a Colorbond metal roof. The RIDGEVIEW is provided in a straightforward to assemble equipment with pre-made panels. The panels are available uncooked timber (not stained or painted) permitting you to pick out the end of your alternative. Examine the underside of this web page for extra cedar coating data.

Usually time required for meeting is about 8 to 10 hours, excluding the ground. The unit will be sited on a concrete base or paved space, or a flooring equipment can be utilized. Meeting is sort of simple – step one is to decide on a pleasant stage web site in your yard. The ground is a base constructed both utilizing a really helpful Subfloor or by laying a concrete slab. If the location is out of stage the Subfloor equipment will work properly, this has been particularly designed to scale back web site works the place the bottom will not be stage. As soon as the ground is in place the following step is to erect the pre-made partitions. Beginning on the entrance nook, the panels are joined and gables fixed into place. The roof is then assembled on the bottom, lifted into place and fixed to the partitions. Subsequent the hinges are connected to the door, the door fixed to the wall and the door deal with put in. Lastly, the nook posts, cowl strips, fascias and the ridge capping are connected to finish the product.

The RIDGEVIEW STUDIO is provided normal with out a ground. A Subfloor Package is out there as an non-obligatory further, this consists of powerful, Yellow Tongue flooring sheets because the completed floor. The Subfloor Package offers for set up with out the necessity for a ready base resembling a concrete slab or paved space.

Please be aware the usual roof is a rib and pan colorbond metal profile. Some non-standard roof colors are corrugated profile. If that is essential to you please e-mail to double examine earlier than ordering.

The RIDGEVIEW STUDIO options embrace:

• Dimensions: 3048 mm Huge x 3132 mm Deep x 2725 mm Excessive (add 140mm for HD ground equipment)
• Colonial fashion glazed doorways 1440 W x 1850mm H
• Colorbond ‘MONUMENT’ roof panels
• Termite resistant pine 42mm x 35mm framing
• Wind score: Cyclone rated! W60 / N4 / C2 – 60m sec or 219 kmh winds
• Canadian Western Purple Cedar 18mm thick VJ cladding
• Pre-assembled panels for fast and straightforward meeting
• Subfloor Package accessible as non-obligatory further
• 10 yr guarantee
• Supply to your tackle accessible

Checklist of dimensions:

• Inside Dimensions: 2916 x 3000 x 2575 Entrance x Aspect x Top (mm)
• Exterior of Body Dimensions: (Concrete Slab Measurement)  3000 x 3084 Entrance x Aspect (mm) (making slab barely smaller than cladding measurement permits rain to run off partitions and never enter the studio)
• Exterior Cladding Dimensions:  3048 x 3132 Entrance x Aspect (mm)
• Exterior Roof Dimensions: 3432 x 3368 x 2725 Entrance x Aspect x Peak Top (mm)
• Door Opening Dimensions: 1850 x 1440 Top x Width (mm)
• Wall Top: 2020mm
