Dosatron NDS 11&14 GPM

This Dosatron NDS 11&14 GPM Kit includes all the parts you need for the inlet of your Nutrient Delivery System, and is used in in conjunction with DAB Pumps, or pumps with VFD Control. The Dosatron NDS 1114 GPM Kit does not include a pressure regulator – for systems with inconsistent or high pressure situations, the Standard Starter Kit should be used.

The Dosatron NDS 14 GPM Unit is perfect for the indoor grower. It’s water-powered so no electricity is needed and it includes a union for easy installation into the Nutrient Delivery System (NDS).

To Complete the LO-FLO NDS, you will also need Dosatron Injectors, Mixing Chamber Kit(s), the pH/EC Monitor Kit or END Kit, and the Water Hammer Arrestor Kit.

Included Accessories: Mounting bracket, suction hose, bypass, union, weighted strainer, and quick start guide.

1.25 to 11 mL (0.25 to 2.25 tsp) | 0.03 to 0.3%

With a dilution range of 1:3000 to 1:333, it is perfect for food safety and sanitation.

• Connection Size: 3/4″ NPT
• Unit Weight: 6 lbs
• Dimensions: 21″ x 6 5/16″
• mL/gal: 1.25 to 11 mL
• Tsp/gal: 0.25 to 2.25
• Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
• Pressure: 4.3 to 85 PSI
• Ratio: 1:3000 to 1:333
• Percentage (%): 0.03 to 0.3%
• Oz/gal: 0.0425 to 0.384

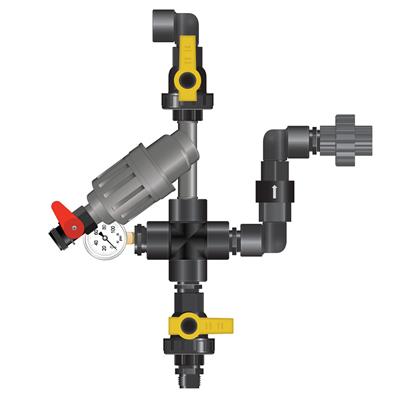

Kit Includes: Union, Check valve, Elbows, Nipples, Tee, Hose adapter, Ball valves, Coupler, Filter, Pressure gauge, Teflon tape
