BOWRAL DESIGNER STUDIO 20’x10′

The principle options at a look:

• Stegbar glass and aluminium home windows and doorways, made in Australia
• Taller 2.16m wall peak
• Guttering included
• Accessible pre-painted in 4 combos or in 2 raw-cedar combos
• 70 x 35mm wall framing
• Straightforward DIY meeting or guide one in every of our installers
• 20 12 months, trade main guarantee

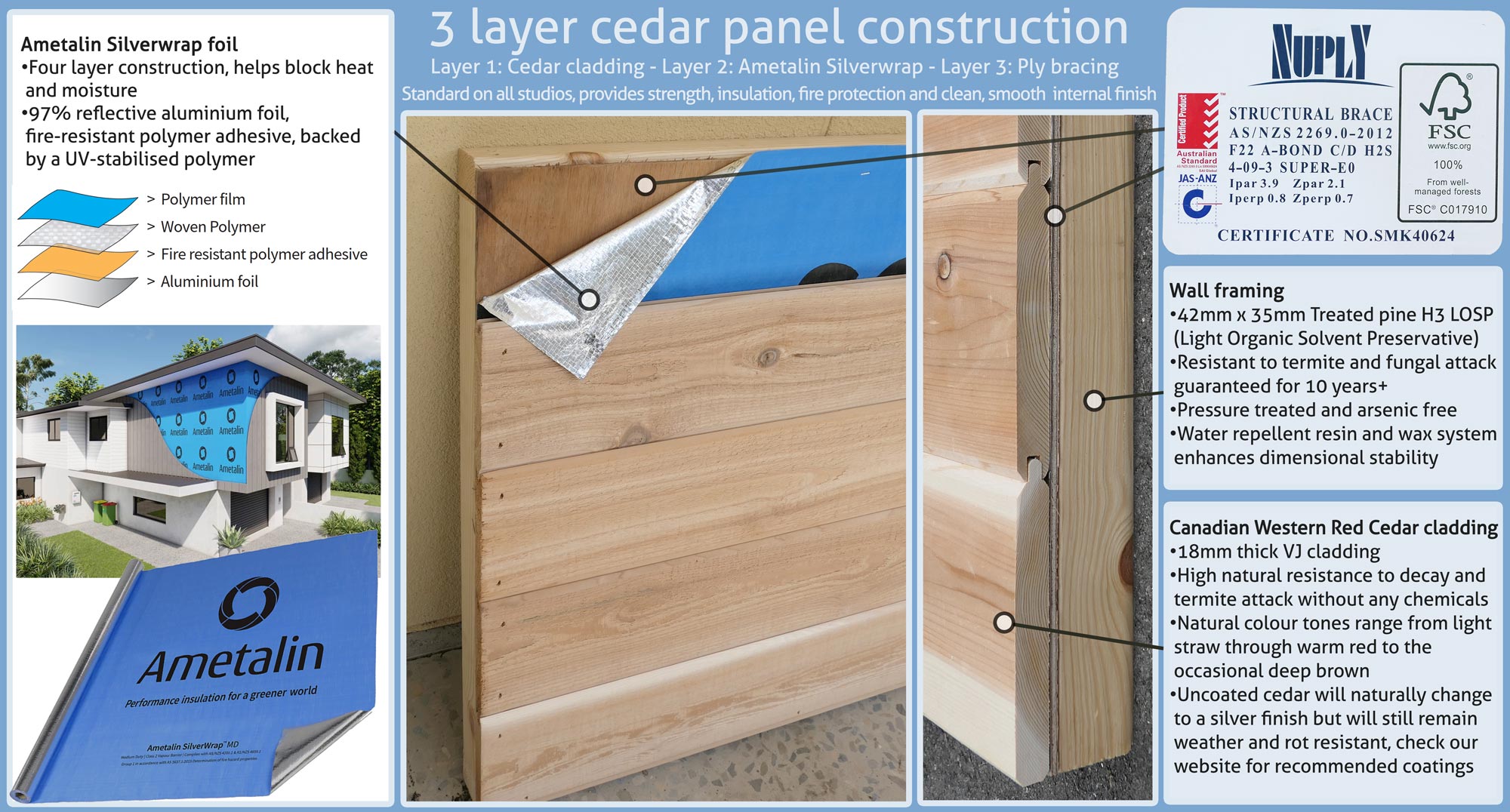

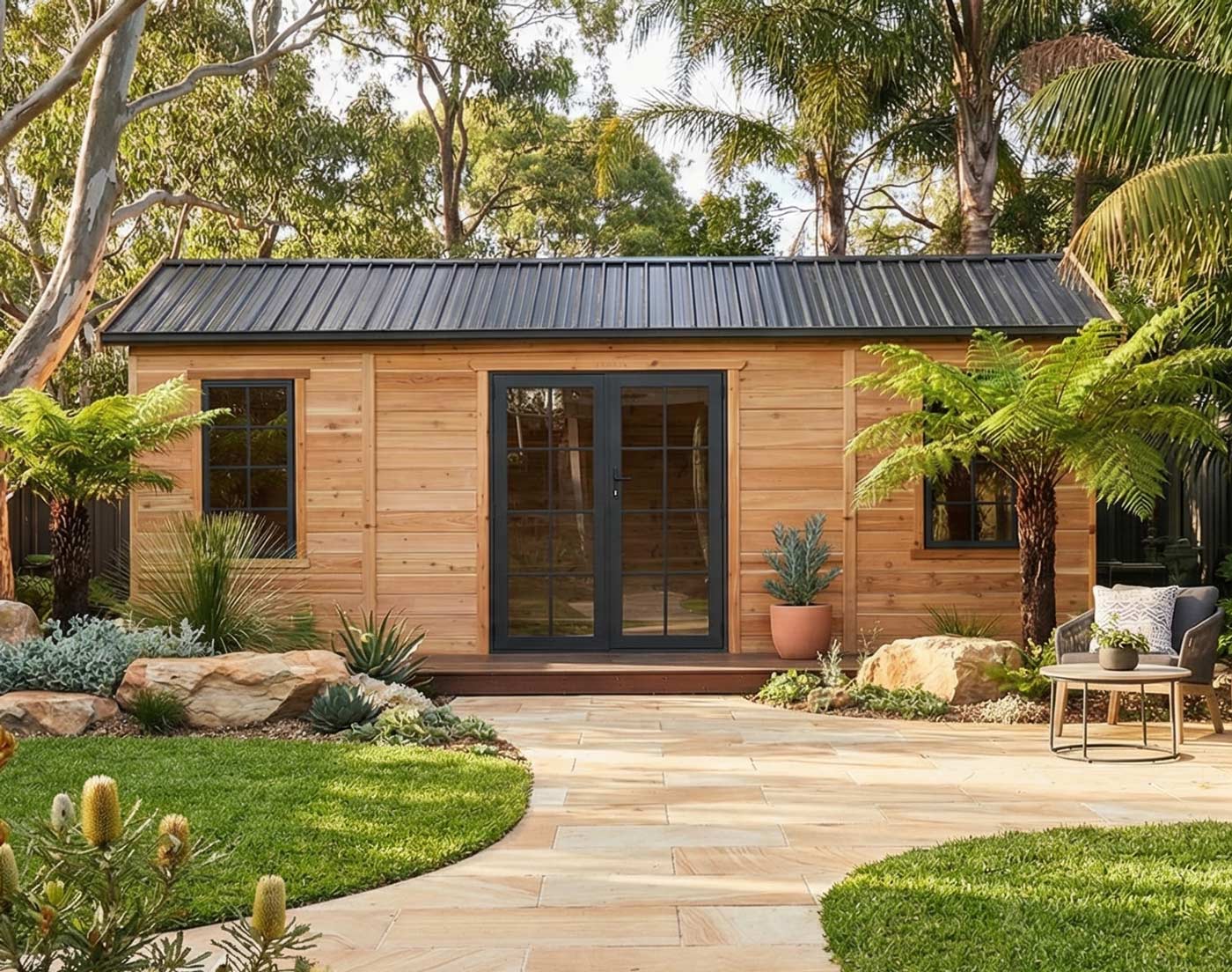

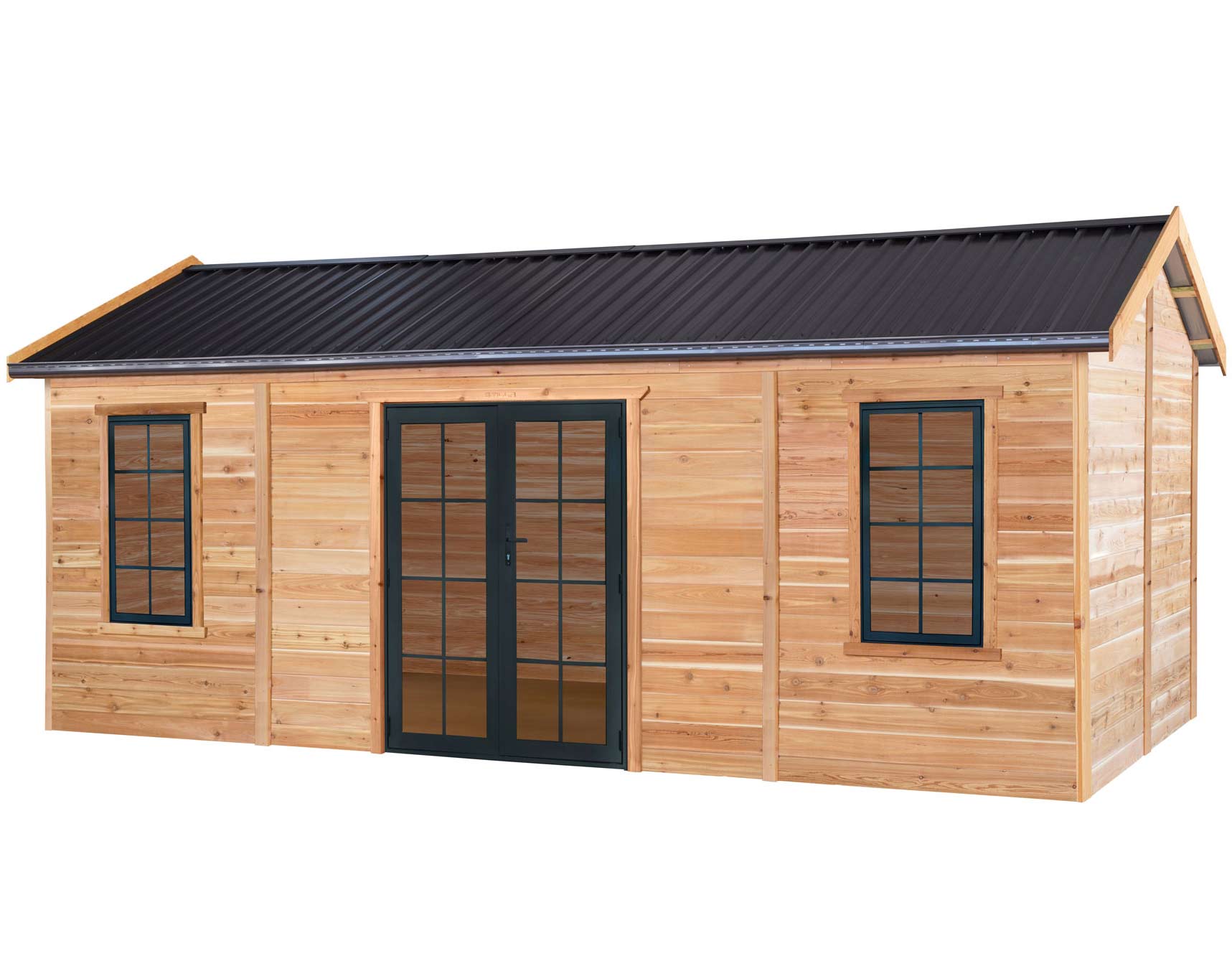

The BOWRAL STUDIO is designed to be a pretty addition to any property in addition to offering a useful, long-lasting outside work area or passion room. The BOWRAL STUDIO contains a Colorbond gable roof with overhanging eaves, Colorbond guttering system, aluminium doorways and two aluminium opening home windows and. The wall panels encompass a 3 layer, “sandwiched” panel system – cedar then foil then hardwood ply with handled pine framing. This improves energy, with a tremendous 219kmh wind ranking and insulation in opposition to moisture / warmth plus offers a clean floor on the within of the studio making it simpler to color should you resolve to not line the partitions.

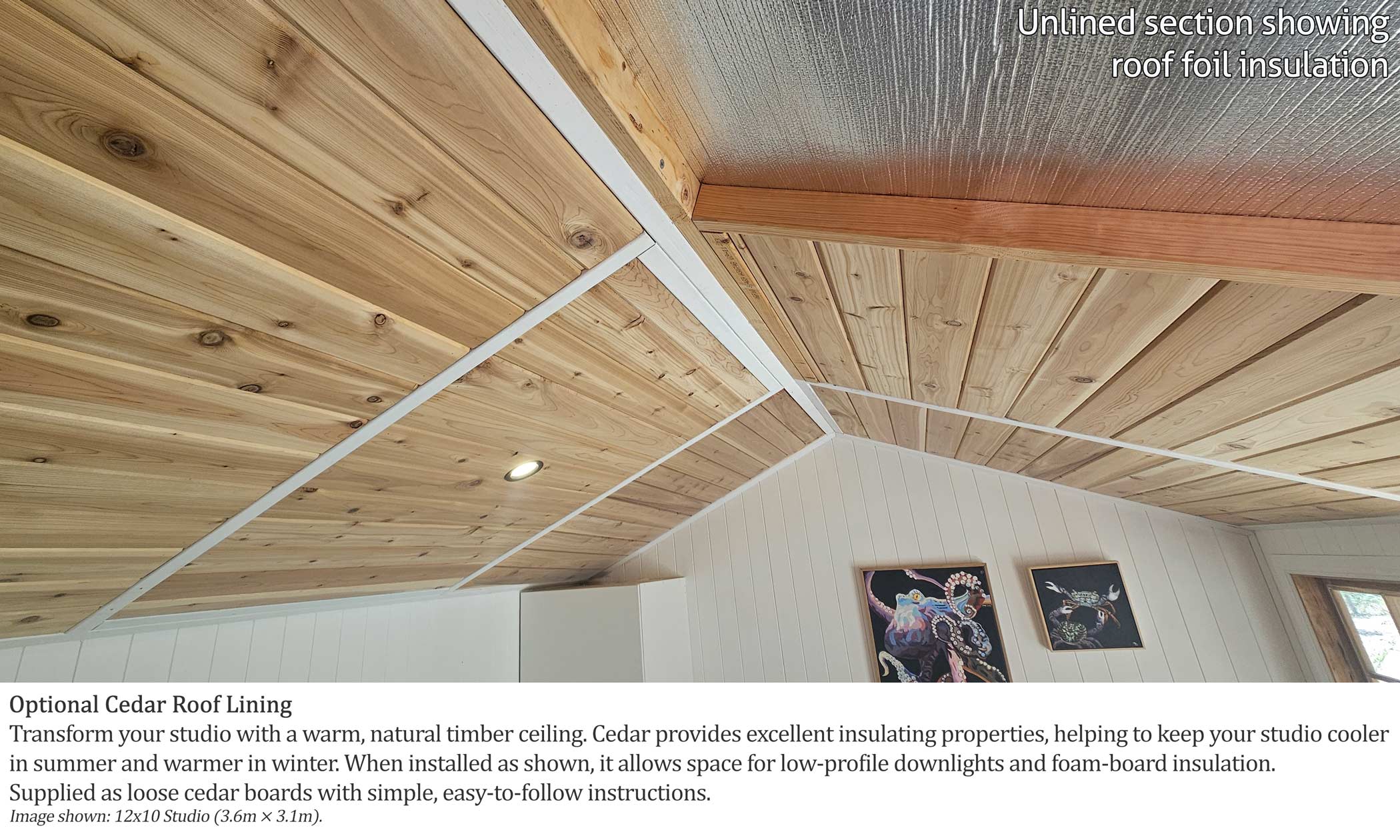

Choices together with further home windows, further doorways, cedar roof lining, deck plus annex roof, in addition to a full flooring package can be found.

Our CEDAR STUDIO vary is manufactured in Australia, and is constructed utilizing 70 x 35mm termite resistant pine framing and 18mm thick Canadian Western Purple Cedar VJ cladding with a Colorbond metal roof. The BOWRAL is equipped in a simple to assemble package with pre-made panels. The panels are available uncooked timber (not stained or painted) permitting you to pick the end of your selection. Test the underside of this web page for extra cedar coating info.

Sometimes time required for meeting is about 11 to fifteen hours, excluding the ground. The unit could be sited on a concrete base or paved space, or the subfloor package can be utilized. Meeting is sort of easy – step one is to decide on a pleasant degree web site in your yard. The ground is a base constructed both utilizing a really useful subfloor or by laying a concrete slab. If the positioning is out of degree the subfloor can maintain that because it comes with 75cm H4 handled stumps. As soon as the ground is in place the subsequent step is to erect the pre-made partitions, the panels are joined collectively through timber Tek screws and gables mounted into place. The roof is then assembled on the bottom, lifted into place and mounted to the partitions, the roof panels on the “Designer” vary are in sections, making meeting simpler and requiring much less manpower. Subsequent the pre-assembled aluminium doorways are positioned and glued into place. Lastly, the nook posts, cowl strips, fascias and the ridge capping are connected to finish the product.

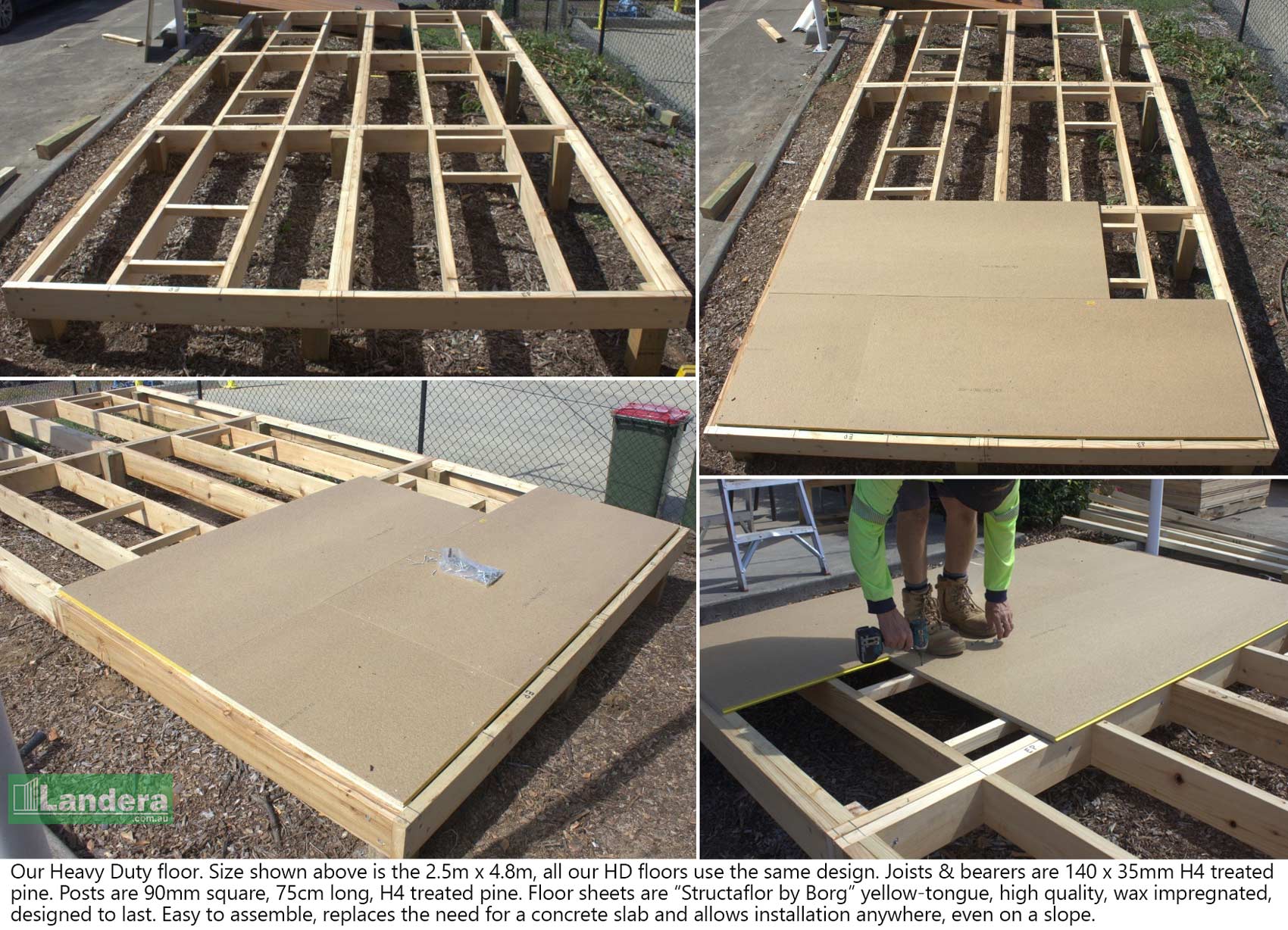

The BOWRAL STUDIO is equipped commonplace with no ground. A Subfloor Package is obtainable as an non-obligatory further, this consists of robust, Yellow Tongue flooring sheets because the completed floor. The Subfloor Package gives for set up with out the necessity for a ready base similar to a concrete slab or paved space.

The BOWRAL STUDIO options embrace:

• Dimensions, outdoors of partitions: 6048mm Vast x 3132mm Deep x 2600mm Excessive (add 140mm for HD ground package)
• Double aluminium & glass doorways are commonplace
• Colorbond MONUMENT or SURFIMIST roof, door and window colors as commonplace, non-obligatory roof colors additionally accessible

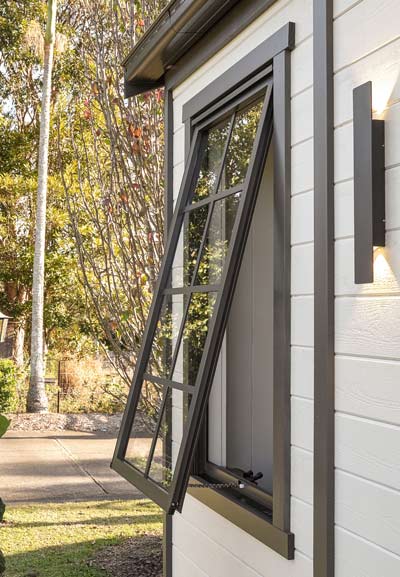

• Two opening aluminium home windows included commonplace
• Termite resistant pine 70mm x 35mm framing
• Wind ranking: Cyclone rated! W60 / N4 / C2 – 60m sec or 219 kmh winds
• Canadian Western Purple Cedar 18mm thick VJ cladding
• Pre-assembled panels for fast and simple meeting
• Subfloor Package accessible as non-obligatory further
• 10 12 months guarantee
• Supply to your deal with accessible
• NOTE: WA, Qld, Vic and SA patrons, please examine together with your council earlier than buy, this studio is over 10 sq. metres. We advocate putting in this as a “shed”.

Record of dimensions:

• Inside Dimensions: (mm) 5916 x 3000 x 2575
• Exterior of Body Dimensions: (mm) 6000 x 3084 (Use this measurement for a slab. This may make slab barely smaller than outdoors of partitions, permitting rain to run off and never enter the studio)
• Exterior of Cladding Dimensions: / Slab Dimension (mm)6048 x 3132
• Exterior of Roof Dimensions: (mm) 6368 x 3432 x 2725
• Door Opening Dimensions: (mm) 1850 x 1440
• Wall Top: (mm) 2160
• Slab Observe: Permit 300 mm round slab for roof overhang
• Framing: 70x 35 mm handled pine (H3-LOSP
