BARAKULA STUDIO 10’x10′

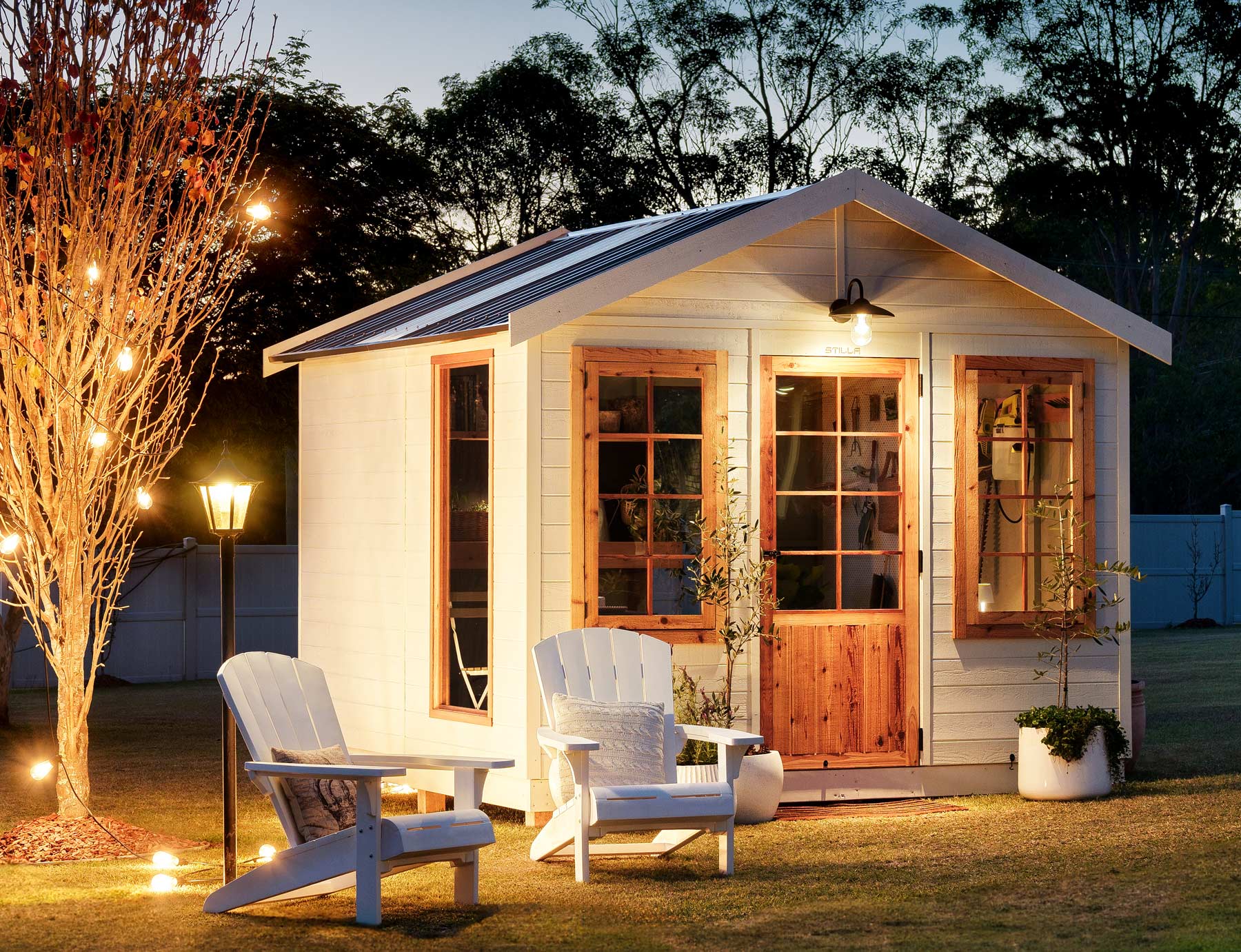

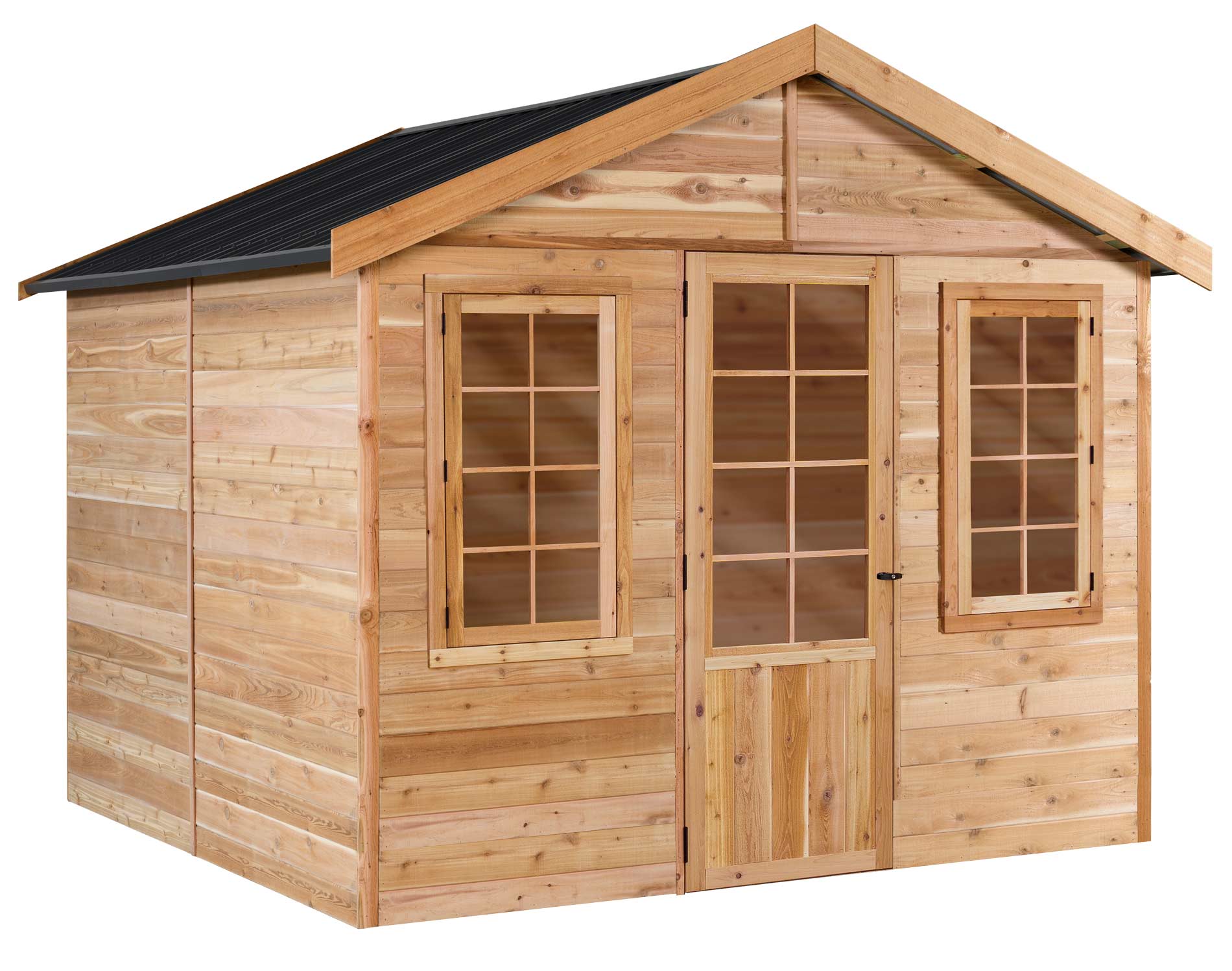

The BARAKULA STUDIO is designed to be an attractive addition to any property as well as providing a functional, long-lasting outdoor work space or hobby room. The BARAKULA STUDIO features a Colorbond gable roof with overhanging eaves, colonial style door with tinted acrylic glazing and a locking T-handle. Twin Opening Windows are supplied as a standard feature. Options including extra windows, extra doors, deck plus annex roof, as well as a full flooring kit are available. We can also arrange installation at a very reasonable price, click the “Book Installation” link above.

Our CEDAR STUDIO range is manufactured in Australia, and is constructed using 42 x 35mm termite resistant pine framing and 18mm thick Canadian Western Red Cedar VJ cladding with a Colorbond steel roof. The BARAKULA is supplied in an easy to assemble kit with pre-made panels. The panels come in raw timber (not stained or painted) allowing you to select the finish of your choice. Check the bottom of this page for more cedar coating information.

Typically time required for assembly is about 8 to 10 hours, excluding the floor. The unit can be sited on a concrete base or paved area, or a flooring kit can be used. Assembly is quite straightforward – the first step is to choose a nice level site in your yard. The floor is a base constructed either using a recommended HD floor or by laying a concrete slab. If the site is out of level the heavy duty floor kit will work well, this has been specifically designed to reduce site works where the ground is not level. Once the floor is in position the next step is to erect the pre-made walls. Starting at the front corner, the panels are joined and gables fastened into position. The roof is then assembled on the ground, lifted into position and fastened to the walls. Next the hinges are attached to the door, the door fastened to the wall and the door handle installed. Finally, the corner posts, cover strips, fascias and the ridge capping are attached to complete the product.

The BARAKULA STUDIO is supplied standard without a floor. A Heavy Duty Floor Kit is available as an optional extra, this includes tough, Yellow Tongue flooring sheets as the finished surface. The Heavy Duty Floor Kit provides for installation without the need for a prepared base such as a concrete slab or paved area.

Please note the standard roof is a rib and pan colorbond steel profile. Some non-standard roof colours are corrugated profile. If this is important to you please email to double check before ordering.

The BARAKULA STUDIO features include:

• Dimensions: 3132 mm Wide x 3048 mm Deep x 2725 mm High (add 140mm for HD floor kit)
• Single colonial style glazed door 1440 x 8450mm opening
• Colorbond ‘MONUMENT’ roof panels
• Two Windows, 630mm opening with tinted acrylic glazing included standard
• Termite resistant pine 42mm x 35mm framing
• Wind rating: Cyclone rated! W60 / N4 / C2 – 60m sec or 219 kmh winds
• Canadian Western Red Cedar 18mm thick VJ cladding
• Pre-assembled panels for quick and easy assembly
• Heavy Duty Floor Kit available as optional extra
• 10 year warranty
• Delivery to your address available

List of dimensions:

• Internal Dimensions: 3000 x 2916 x 2575 Front x Side x Height (mm)
• External of Frame Dimensions: (Concrete Slab Size) 3084 x 3000 Front x Side (mm) (making slab slightly smaller than cladding size allows rain to run off walls and not enter the studio)
• External Cladding Dimensions:  3132 x 3048 Front x Side (mm)
• External Roof Dimensions: 3432 x 3368 x 2725 Front x Side x Peak Height (mm)
• Door Opening Dimensions: 1850 x 840 Height x Width (mm)
• Wall Height: 2020mm
